Click to enlarge Navigator Light 1984-Present

The Navigator 2000 compass was introduced in 1984. The sunshade assembly is available in black, white and gray. The LED lighting is available in red or green and are available in 12volt or 24volt. Click on the diagram on the left to enlarge the schematic. Identify the key numbers of the parts that you need. The key numbers are the first number in the part numbers below.


navnewlight

Click to enlargeSunshade
1NV-0070$24.00Color:
Click to enlargeSunshade Screw
2NV-0165$2.50Model Year:
Click to enlargeWasher
3NV-0080$0.50
Click to enlargeLighting KitIncludes LED, Clips and Screws

4CS-0025KIT$27.00Color:
Click to enlargeLED with 18" of Wire (SM. C.B.)
5SH-0174ASY$22.00Options:
Click to enlargeLight Bracket
6NV-0059$2.80
Bracket ScrewBracket Screw
7SH-0066$0.25
Click to enlargeSunshade Assembly with LED's
8NV-0070ASY$49.00Options:  Model Year:
BN-202 CoverThis part can be ordered on the BN-202 parts breakdown page

18NV-0014
Cover Retaining ScrewCover Retaining Screw4-40 X 1/4"

19SH-0064$0.48
Bottom Light HousingBottom Light Housing
20-NV-0047$14.00
Bottom Light Hsg. Retaining ScrewBottom Light Hsg. Retaining Screw
21-NV-0065$0.49

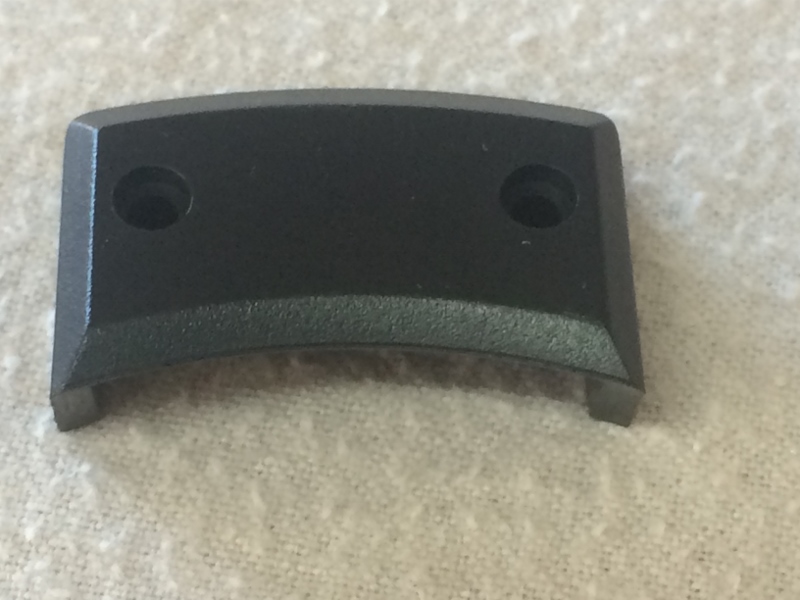

Click to enlargeTop Light Housing
22-NV-0048$6.00
Click to enlargeTop Light Retaining Screw
23-NV-0067$0.96
Click to enlargeUpper Light Assembly
24-NV-0045ASY$18.00

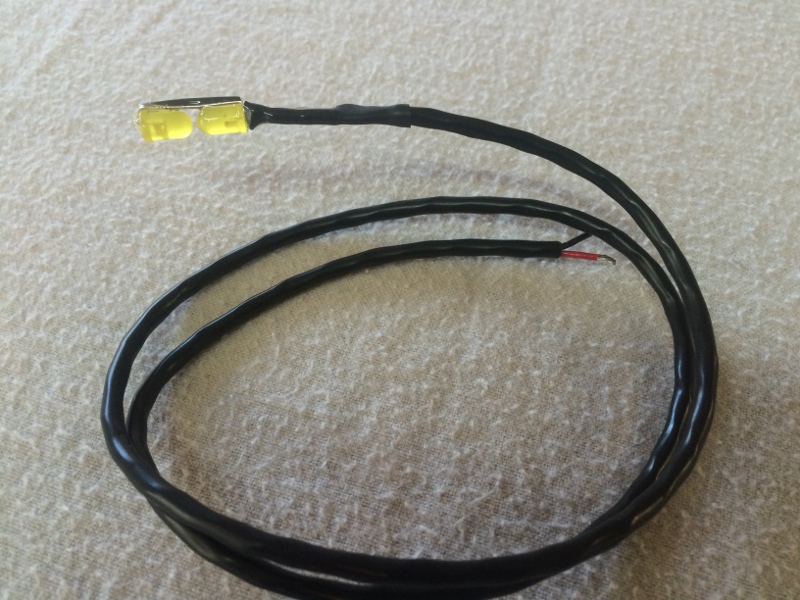

Click to enlargeLower Light Assembly
25-NV-0044ASY$23.00
